100W Lighting for Streets-IL02

✔ EFFICACY: 140~160lm/W
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK09 with tempered glass
✔ DISTRIBUTION: T2 (85*150°, 110*155°, 75*150°) / T3 (100*160°, 90*150°, 100*145°) / T4 (115*145°)
✔ HOUSING: Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
✔ LED Model: 3030/5050

Availability:

Quantity:



Inquire Add to Basket

Model:
AOK-100WiL02
Brand:
AOK
Code:
##

LED Lighting for Streets IL02(s) Series LED Street Light Overview

Upgrade your street lighting with the IL02 Series 100W Smart LED Street Lights. Designed for optimal performance, these street lights feature precision-engineered lenses made from optical-grade polycarbonate, delivering maximum light intensity with IESNA Type II, III, and IV distributions. With a 0% total lumen output above 90° (BUG Rating, U=0), these luminaires ensure enhanced visual comfort by minimizing glare and providing a wider, smoother, and more uniform light distribution. The IL02(s) Series also boasts an IP66 rating for exceptional durability, making it an ideal choice for reliable, high-performance outdoor street lighting.

Features:

✔ Streamlined Design: Reduces wind resistance for enhanced performance.

✔ Reserved Sensor Location: Facilitates easy installation.

✔ Surge Protection: 10KV~20KV surge protection ensures safety and longevity.

✔ Durable Construction: Powder-coated PC + toughened glass for added durability.

✔ Easy Maintenance: Buckle design (80W-230W) allows for simple maintenance.

✔ Improved Heat Dissipation: Fin-shaped radiator (80W-230W) enhances cooling efficiency.

Electrical:

✔ Dimming Options: 1-10V, PWM, and timer dimming with three timer modes. Power Factor (PF) ≥0.95.

✔ Driver Specifications: Constant current Class II driver, 100-277Vac, 50-60Hz, with Class I optional.

✔ High Efficiency: Driver efficiency up to 90%, with a minimum of 85%.

✔ Surge Protection: 6kV line-line, 10kV line-earth, with optional 20KV SPD.

✔ Operating Temperature: -40°F to 122°F (-40°C to 50°C).

✔ Control Options: Photocell, Zhaga Base, Zigbee, or Lora lighting controllers available.

✔ Surge Protective Device: 10KV~20KV.

Construction:

✔ Tool-less Maintenance: Hinged removable door for easy access.

✔ Auto-Electrical Disconnection: Built-in circuit breaker and tool-free electrical gear tray.

✔ Durable Finish: UV stabilized polyester powder paint for corrosion resistance.

✔ Adjustable Mounting: Leveling adjustment from -15° to +15° (80W-230W).

✔ Vibration Rated: 3G vibration rating for durability.

Mounting:

· Installation Options: Side entry and Post Top

Recommended Use:

· Roadway lighting

· Street lighting

· Pathway lighting

· Garden boardwalks

Warranty:

· 5-year standard warranty, with a 10-year warranty option available. Contact AOK sales for more details.

Certification/Listing

· ENEC, CB, CE, and RoHS Listed, for other certificates please request

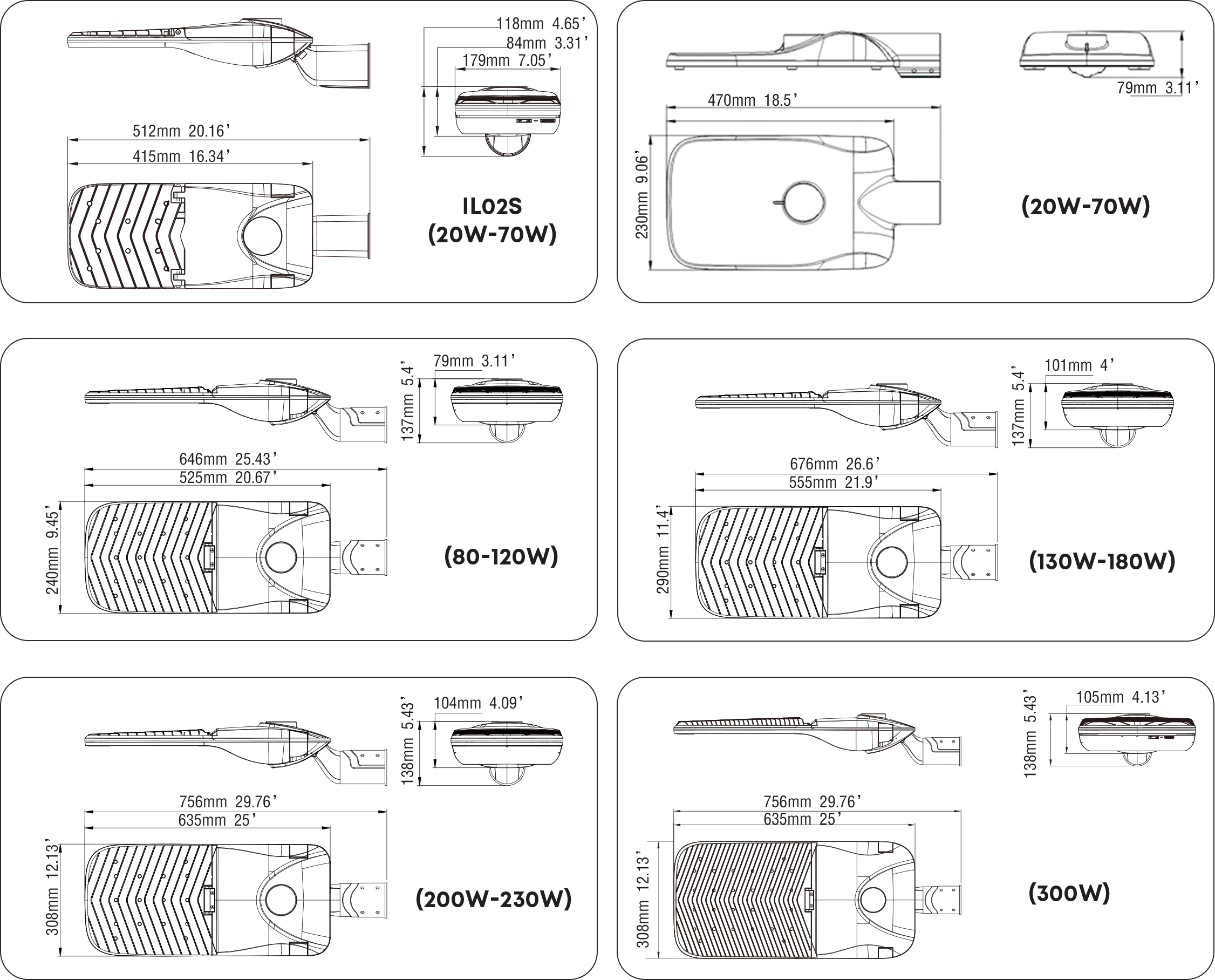

Dimensions:

IL02 size(3)

Standard Parameter

Electrical Data
Model		AOK-20WiL02	AOK-30WiL02	AOK-40WiL02	AOK-50WiL02	AOK-60WiL02	AOK-70WiL02	AOK-80WiL02	AOK-90WiL02	AOK-100WiL02	AOK-120WiL02
Input Voltage		100-277VAC						100-277VAC
THD（220Vac）		≤10％						≤10％
PF(220Vac)		≥0.95						≥0.95
Driver		Inventronics / Sosen / Philips. Class 1/ Class 2, EU
Operating Temperature		-40°C to 55°C (-40 °F to 131 °F)
Storage Temperature		-40°C to 80°C (-40 °F to 176 °F)
Control Option		DALI, 1-10V/ PWM / timer dimming, Nema, Presence detection sensor. Dim-to-Off with standby power <= 0.5W.
Surge Protection		10kV / 20kV optional
Photometric Data

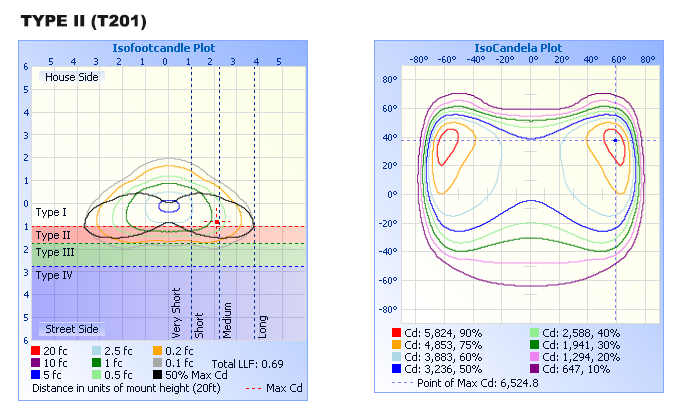

Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)	T201-12in1 (85*150°)	156lm/W	155lm/W	150lm/W	148lm/W	146lm/W	144lm/W	144lm/W	143lm/W	141lm/W	137lm/W

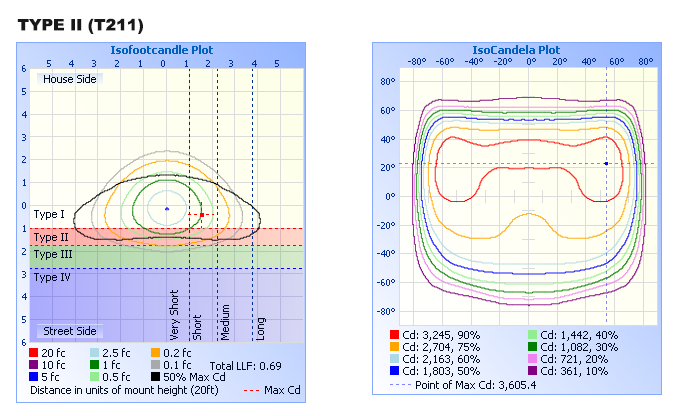

	T211-12in1 (110*155°)	155lm/W	154lm/W	147lm/W	145lm/W	143lm/W	141lm/W	143lm/W	142lm/W	140lm/W	136lm/W

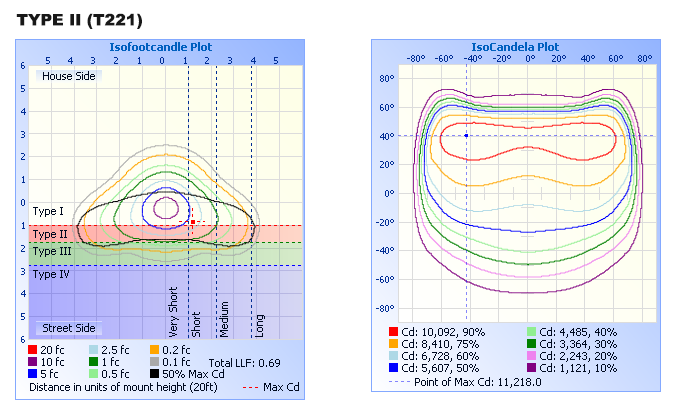

	T221-16in1 (75*150°)	158lm/W	156lm/W	154lm/W	152lm/W	150lm/W	148lm/W	154lm/W	152lm/W	150lm/W	145lm/W
	T301-12in1 (100*160°)	152lm/W	153lm/W	145lm/W	143lm/W	141lm/W	139lm/W	141lm/W	140lm/W	138lm/W	134lm/W
	T311-12in1 (90*150°)	155lm/W	154lm/W	147lm/W	145lm/W	143lm/W	141lm/W	143lm/W	142lm/W	140lm/W	136lm/W
	T321-16in1 (100*145°)	158lm/W	156lm/W	154lm/W	152lm/W	150lm/W	148lm/W	154lm/W	152lm/W	150lm/W	145lm/W

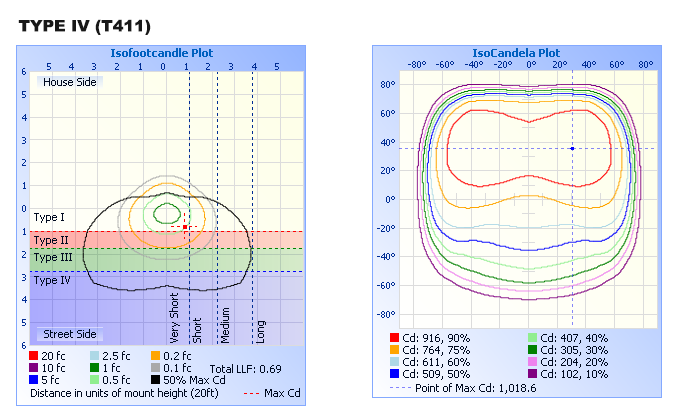

	T411-12in1 (115*145°)	155lm/W	154lm/W	147lm/W	145lm/W	143lm/W	141lm/W	143lm/W	142lm/W	140lm/W	136lm/W
Luminous flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)	T201-12in1 (85*150°)	3120lm	4650lm	6000lm	7400lm	8760lm	10080lm	11520lm	12870lm	14100lm	16440lm
	T211-12in1 (110*155°)	3100lm	4620lm	5880lm	7250lm	8580lm	9870lm	11440lm	12780lm	14000lm	16320lm
	T221-16in1 (75*150°)	3160lm	4680lm	6160lm	7600lm	9000lm	10360lm	12320lm	13680lm	15000lm	17400lm
	T301-12in1 (100*160°)	3040lm	4590lm	5800lm	7150lm	8460lm	9730lm	11280lm	12600lm	13800lm	16080lm
	T311-12in1 (90*150°)	3100lm	4620lm	5880lm	7250lm	8580lm	9870lm	11440lm	12780lm	14000lm	16320lm
	T321-16in1 (100*145°)	3160lm	4680lm	6160lm	7600lm	9000lm	10360lm	12320lm	13680lm	15000lm	17400lm
	T411-12in1 (115*145°)	3100lm	4620lm	5880lm	7250lm	8580lm	9870lm	11440lm	12780lm	14000lm	16320lm
ULR		= 0%, @ Luminaire inclination 0°
CCT		2700K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI		70Ra, 80Ra, 90Ra optional
Beam Angle		Type-II (85150°, 110155°, 75150°) / Type III (100160°, 90150°, 100145°) / Type IV (115*145°)
LED Manufacturer		LUMILEDS/Seoul
LED Model		Lumileds 3030，5050/Seoul3030，5050
Lens		Polycarbonate+tempered glass(5 mm thick)						Polycarbonate+tempered glass(4 mm thick)
Mechanical Data
IP/IK		IP66/IK09, according to standard EN 60529 and EN 62262						IP66/IK08, according to standard EN 60529 and EN 62262
Vibration Resistance		3G, conform to standard IEC 68-2-6.
SCx		Front: 0.014 m²; Side: 0.0214 m²						Front: 0.0219 m²; Side: 0.035 m²
Materials		Heavy-duty die-cast aluminum (EN AC-46100)
Painting		Black, Silver, Gray,Customized color
Surface Treatment		Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
Cable		Pre-wired with a roughly 50 cm cable (Other lengths on request)
Mounting		Side Entry						Side Entry/Post Top
Others
Lifespan		L70 > 100000hrs, @Ta 25°C
Warranty		5 years in standard, 10 years optional
Product Size		47023079mm / 18.59.13.1 inches						25.49.45.4 inches / 646240137mm
Carton Size		520270135mm / 20.510.65.3 inches						28.111.47.9 inches / 715290200mm
Net Weight		3.1kg / 6.83 lbs						5.4kg / 11.90 lbs
Gross Weight		4.0kg / 8.82 lbs						6.1kg / 13.45 lbs
Recommend Installation Height		General 4-12m, based on actual project requirements
Accessories(standard)		10KV SPD, Breather vent						Lid support, Circuit breaker, 10KV SPD, Breather vent
Accessories(optional)		Photocell (with Nema socket)
Application Field		Road & highway, urban road & street, residential area, parks, parking lot, riverside & jogging track
Important Note!		The provided information is solely for reference; the official measurement report holds higher authority.
